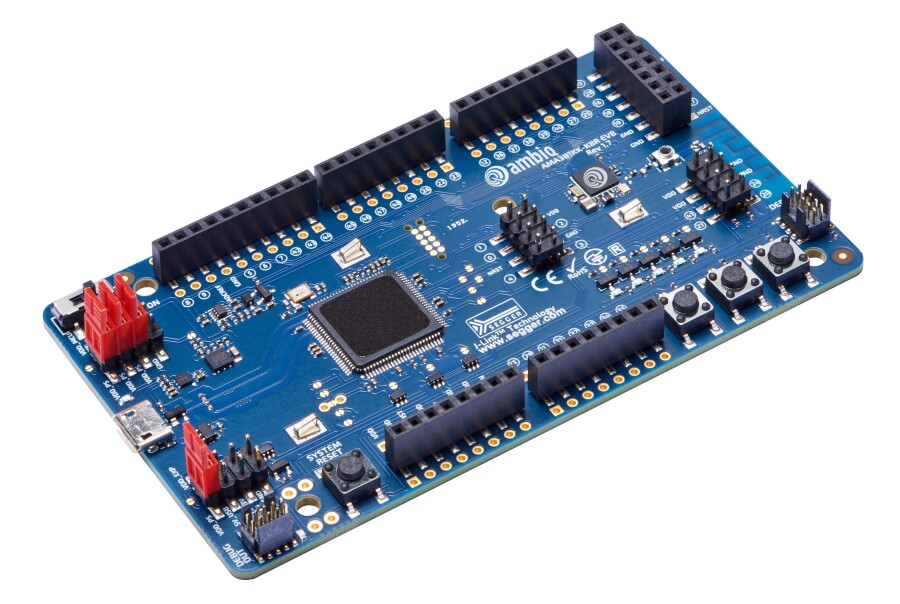

Apollo3 Blue SoC, Eval Board

More information

Stock
Out of stock
Delivery time
if not in stock: 24 weeks
Part number
AMA3BEVB
Manufacturer / supplier
Ambiq
Product brief
View product brief
Datasheet
View datasheet
$ 114.55 excl VAT

Product specifications

Apollo3 Blue EVB - Ultra-Low Power System on Chip

The Apollo SoC Family is an ultra-low power, highly integrated System on Chip platform based on Ambiq's patented Subthreshold Power Optimized Technology (SPOT®) and designed for battery-powered and portable, mobile devices.

The Apollo3 Blue SoC sets a new standard in energy efficiency for battery powered devices with an integrated Arm® Cortex®-M4 processor with Floating Point Unit and TurboSPOT® increasing the computational capabilities of the Arm® Cortex®-M4F core to 96 MHz while lowering the active power consumption to <6uA/ MHz. This combination dramatically reduces energy consumption while still enabling abundant application processing power to add greater capability and extended life to battery operated devices.

The Apollo3 Blue brings several new features to Ambiq's SPOT-based Apollo SoC Family including an integrated DMA engine, QSPI interface, and advanced stepper motor control for ultra-low power analog watch hand management. With unprecedented energy efficiency and PDM microphone inputs, the Apollo3 Blue also forms the core of Ambiq's Voice-on-SPOT® reference platform making it the perfect device for customers who want to add always-on voice assistant integration and command recognition to battery-powered devices.

To increase design flexibility and enable connections to the phone and cloud, the Apollo3 Blue provides a dedicated second core for the ultra-low power Bluetooth Low Energy 5 connectivity platform providing superior RF throughput and leaving plenty of resources available for user applications.

The EVB has these additional features:
- Low power reference design
- Apollo3 Blue SoC in the BGA package (AMA3B1KK-KBR)
- Multiple power/clock options
- Micro USB connector for power/download/debug
- On-board chip antenna (A1)
- RF switch/connector (J1 - Murata MM8430-2610RA1) for BLE PHY testing without removing chip antenna
- Segger J-Link debugger
- Debugger-in / debugger-out ports
- Five user-controlled LEDs
- Three push buttons for application use, plus a reset push button
- Power slide switch with LED power indicator
- Five 8-12 pin Arduino-style headers for pin/power access to shield board(s)
- Multiple test points for power mea

- Ambiq Product -

Related products

AMA3B1KK-KBR-BO

Apollo3 Blue SoC, 96 MHz, 384KB, BGA

$ 3.74

AMA3B1KK-KCR-BO

Apollo3 Blue SoC, 96 MHz, 384KB, WLCSP

$ 3.57

AMA3B1KK-KCR-TB

Apollo3 Blue Thin, 96 MHz, 384KB, WLCSP

$ 3.83

AMA3B2KK-KBR

Apollo3 Blue Plus SoC 96 MHz, 768KB, BGA

$ 4.16
