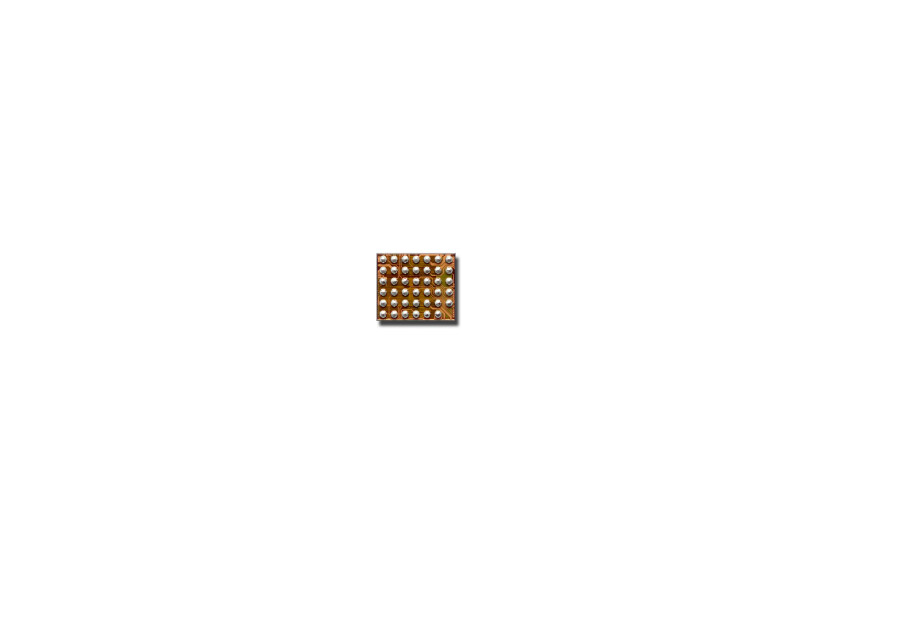

NRND Apollo SoC, 24 MHz, 64KB, WLCSP

More information

Stock
In stock
Delivery time
if not in stock: ~ 16 weeks
Part number
APOLLO512-KCR
Manufacturer / supplier
Ambiq
Product brief
View product brief
Documents
View documents
Datasheet
View datasheet
$ 5.49 excl VAT
Quantity
Unit price
From 1 pcs$ 5.49
From 100 pcs$ 4.58
From 1000 pcs$ 3.66
For project pricing, contact us

Product specifications

APOLLO512-KCR is NRND : Not Recommended for New Designs



Apollo- Ultra-Low Power System on Chip

The Apollo SoC Family is an ultra-low power, highly integrated System on Chip designed for battery-powered devices including wearable electroncis, activity & fitness monitors, and wireless sensors.

By combining ultra-low power sensor conversions electronics with the powerfull Arm® Cortex®-M4 processor with Floating Point Unit (FPU), the Apollo SoC enables complex sensor processing tasks to be completed with unprecedented battery life. Weeks, months, and years of battery life are achievable while doing complex context detection, gesture recognition, and activity monitoring.

The Apollo SoC takes full advantage of Ambiq's patented Subthresholld Power Optimzed Technology (SPOT®) Platform, setting a new industry benchmark in low power design.

The Apollo SoC integrates up to 512KB of flash memory and 64KB of RAM to accomodate radio and ensor overhead while still leaving plenty of space for application code. This System on Chip also includes serial master and UART ports for communicating with radios and sensors including accelerometers, gyroscopes, and magnetometers.

Features


Ultra-Low Supply Current
- EEMBC ULP Bench score of 377
- 35uA/MHz executing from flash at 3.3V
- 143 nA deep sleep mode at 3.3V
- 419 nA deep sleep mode with XTAL-assisted RTC at 3.3V

High-Performance Arm® Cortex®-M4 Processor
- Up to 24 MHz clock frequency
- Floating Point Unit
- Memory Protection Unit (MPU)
- Wake-up interrupt controller with 12 interrupts

Ultra-low Power Memory
- Up to 512KB of flash memory for code/data
- Up to 64KB of low power RAM for code/data

Ultra-low Power Interface for Off-Chip Sensors
- 10-bit, 13-channel up to 800 kSps ADC
- Up to 800 kSps sampling rate
- Temperature sensor with +/-40℃ accuracy

Ultra-low Power Flexible Serial Peripherals
- 2x I²C/SPl masters for communication with sensors, radios, and other peripherals
- 1x I²C/SPl slave for host communications
- 1x UART for communication with peripherals and legacy devices

Rich Set of Clock Sources
- 32.768 KHz Crystal (XTAL) oscillators
- Low Frequency RC (LFRC) oscillator (1.024 KHz)
- High Frequency RC (HFRC) oscillator (24 MHz)
- RTC based on Ambiq's AM08X5/18X5 family

Wide Operating Range
- 1.8-3.8 v, to 85℃

Applications
- Wearable electronics
- Wireless sensors
- Activity and fitness monitors
- Consumer medical devices

Package Options

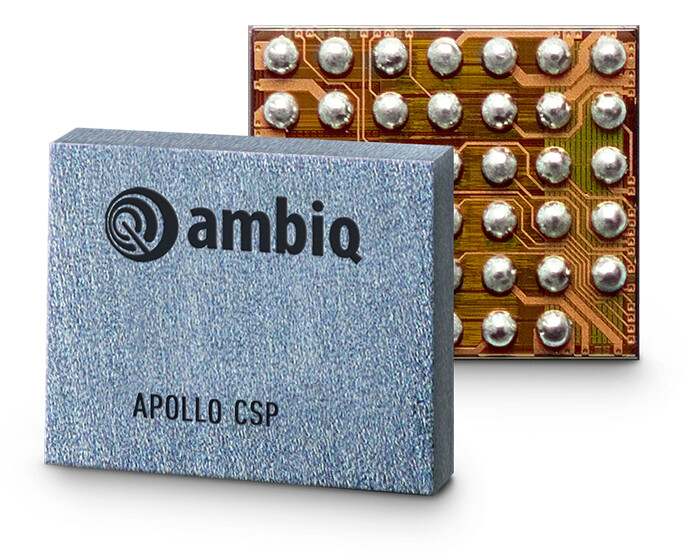

- 2.49mm x 2.90mm 41 -pin CSP with 27 GPIO

Ordering Information
- APOLL0512-KCR (512KB Flash, 64KB RAM, 41 -pin WLCSP)

- Ambiq Product -
