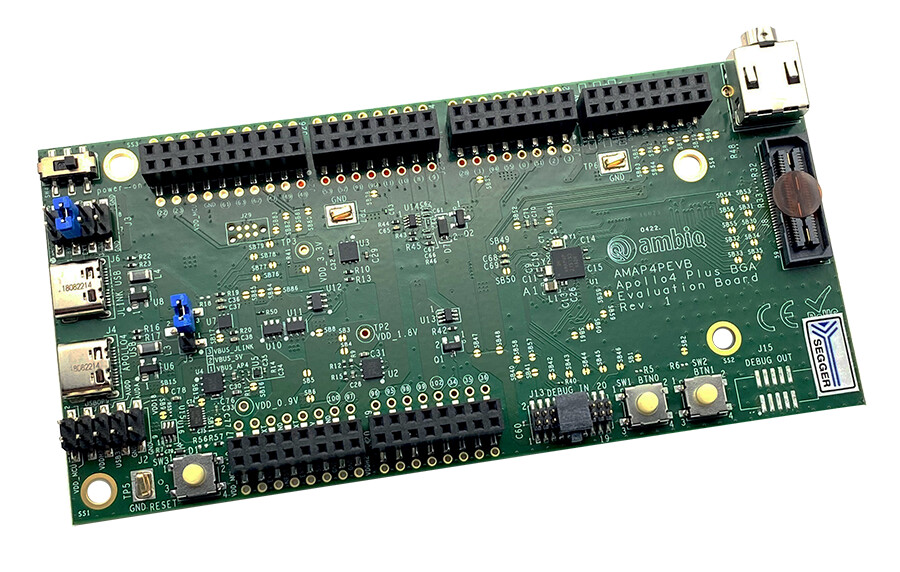

Apollo4 Plus SoC, Eval Board

More information

Stock
In stock
Delivery time
if not in stock: 5 ~ 7 weeks
Part number
AMAP4PEVB
Manufacturer / supplier
Ambiq
Product brief
View product brief
Documents
View documents
Datasheet
View datasheet
$ 249.99 excl VAT
Quantity
Unit price
From 1 pcs$ 249.99

Product specifications

Ambiq®, a leader in low power System-on-Chip (SoC) design, introduces the Apollo4 Plus SoC, bringing enhanced graphics performance, additional on-chip memory and increased memory performance to the Apollo4 SoC product family. Apollo4 Plus enables designers of next generation wearables and smart devices to deliver even more stunning user interface (UI) effects and overall user experience to take their innovative products to the next level.

The Apollo4 Plus SoC is built upon Ambiq’s proprietary Subthreshold Power-Optimized Technology (SPOT®) platform. The Apollo4 Plus complete hardware and software solution enables the battery-powered endpoint devices of tomorrow to achieve a higher level of intelligence without sacrificing battery life. The Apollo4 Plus is available in BGA package option.

With up to 2MB of MRAM and 2.75MB of SRAM, the Apollo4 Plus has more than enough compute power and storage to handle complex algorithms and neural networks while displaying vibrant, crystal-clear, and smooth graphics. If additional memory is required, external memory is supported through Ambiq’s high-bandwidth multi-bit SPI and eMMC interfaces.

The Apollo4 Plus is purpose-built to serve as both an application processor and a coprocessor for battery-powered endpoint devices, including smartwatches, children’s watches, fitness bands, animal trackers, far-field voice remotes, predictive health and maintenance, and the smart home.

Features and Specifications


Ultra-Low Supply Current
- 4 µA/MHz executing from MRAM (with cache)
- Low-power sleep and deep sleep modes with selectable levels of RAM/cache retention

High-Performance Arm® Cortex®-M4 Processor with FPU
- Up to 192 Mhz clock frequency
- Floating Point Unit (FPU)
- Memory Protection Unit (MPU)

Ultra-Low Power Memory
- Up to 2MB of non-volatile MRAM for code/data
- Up to 2.75MB of low power RAM for code/data

Ultra-Low Power Interface for On- and Off-Chip Sensors
- 12-bit ADC, 11 selectable input channels
- Up to 2.8 MS/s sampling rate
- Temperature sensor with ±3°C accuracy

Ultra-Low Power Flexible Serial Peripherals
- 2x 2/4/8-bit SPI master interfaces
- 8x I²C/SPI masters for peripheral communication
- 1x SPI slave for host communications
- 4x UART modules with flow control
- 1x USB 2.0 HS/FS device controller
- 1x SDIO (SD3.0)/1x eMMC (v4.51)

Display
- MIPI DSI 1.2 with 2 data lanes up to 500 Mbps
- Up to 500 x 500 resolution
- 4 layers with alpha blending
- Frame Buffer Decompression

Graphics
- 2D/2.5D graphics accelerator
- Full Alpha Blending
- Texture and Frame Buffer Compression
- Anti-Aliasing
- Dithering
- Vector Graphics

Audio Processing
- 1x stereo Low Power Analog microphones
- 4x stereo Digital microphones
- 2x full-duplex I²S ports with ASRC

Rich Set of Clock Sources
- 16-52 MHz and 32.768 kHz Crystal (XTAL) oscillators
- 1 kHz Low Frequency RC (LFRC) oscillator
- 2x High Frequency RC (HFRC) oscillator

Power Management
- Operating range: 1.71-2.2 V, –20°C to 60°C
- SIMO buck
- Multiple I/O voltages supported

Applications
- Smart watches/bands
- Wireless sensors and IoT
- Activity and fitness monitors
- Children's watches
- Animal trackers
- Motion and tracking devices
- Alarms and security system
- Far-field voice remotes
- Consumer medical devices
- Predictive maintenance
- Smart home

Package Options
- Evaluation board

Ordering Information
- AMAP4PEVB

-- Ambiq product --

Related products

AMAP42KP-KBR

Apollo4 Plus SoC, 192 MHz, 2.75MB, BGA

$ 9.85
